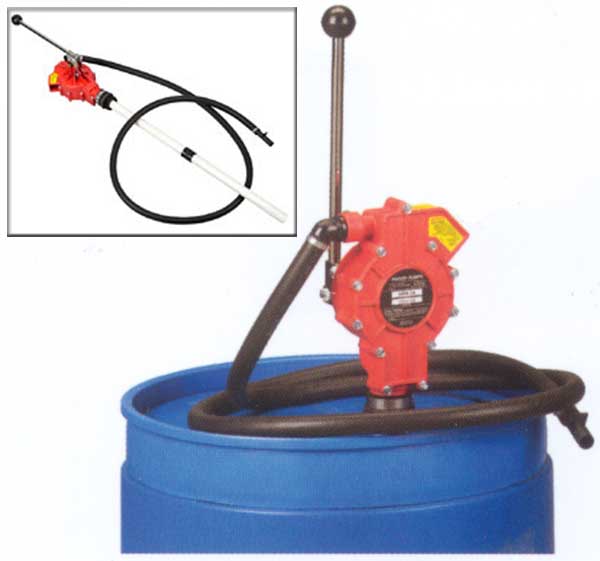

Hand Dispensing Pump - ECTFE (Halar) HHV

ECTFE (Halar) - Hand Dispensing Pump is a double-acting piston type which will handle a wide range of solutions. The pump body, valves and valve seats and piston are all made of chemically resistant, performance engineered plastics, especially compounded to give the pump strength and rigidity. All internal metal parts in contact with the liquid are made of stainless steel. The O-ring and gasket materials are cork-nitrile, Viton® or EPDM. 034

Features:
• Viscosities up to 2000 SSU
• Two position pump handle: can be mounted above or below the pump
• Controlled discharge rate: discharges approx one quart on every complete forward and backward cycle
• Tamper proof handle: can be padlocked to protect against unauthorized use
• Suction lift: tested for 15 ft. minimum
• Discharge head: up to 25 ft.
• Self-lubricating Teflon® (TFE) Piston Ring: operates wet or dry for long life
• Barrel Bung Adapter: 2" NPT polyester standard on HP models. Halar® standard on HR and HH models. 2" buttress in polypropylene optional
• 1" NPT suction, 3/4" NPT discharge

Model: HHV
”O”-Ring: Viton
Gasket: Viton

Model Number: 59-0007
Part Number: 25-10348


Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
