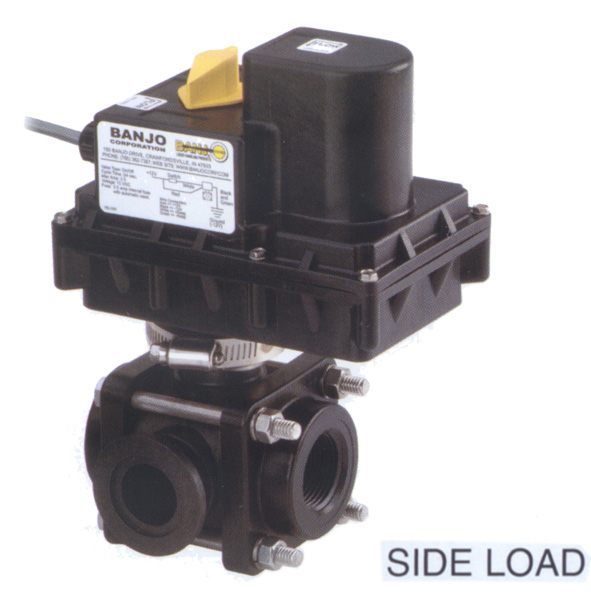

1" 3-Way Electric Ball Valves - Threaded w/Flanged Inlet - SL - PPL

3-Way Electric Valves 1" Threaded with 1" Flanged Inlet. Side Load - directional flow right or left, valve flow cannot be turned off, 3/4 second response time. Max PSI 150. Pipe Size 1". Opening thru Ball 1".
• 316 stainless steel ball & stem.
• Stainless steel hardware.
• Fiberglass reinforced polypropylene.
• Glass reinforced PTFE seats.
• FKM (viton type) or EPDM O-rings.
• 12-volt DC operated.
• 150 P.S.I. maximum pressure @ 70°F.
• Easily repairable.
• Open/closed indicator.

Model Number: EV100SL
Part Number: 10-15181

Weight: 5 lb

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
