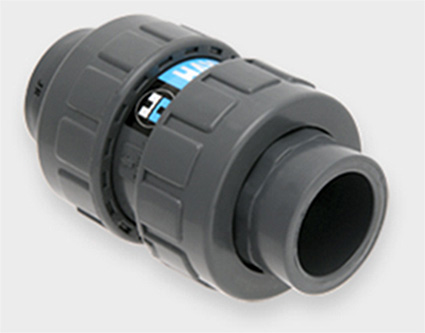

3/4" PVC FPM O-Ring - FPM Seat - Check Valves - Skt/Thd

TCB Series Industrial True Union Ball Check Valves are cost effective, yet rugged enough to stand up to the most demanding industrial & commercial applications.
Backflow Prevention: Hayward's TCB Series Industrial True Union Ball Check Valves prevent reversal of flow in piping systems. They are ideal where backflow could potentially cause damage to pumps, filters, or process equipment.
Automatic Operation: TCB Series True Union Ball Check Valves operate without the need for any adjustments or settings. Line pressure moves the solid plastic ball off the elastomer seat, opening the valve. When the inlet flow stops, back pressure moves the ball back onto the seat - stopping the flow. Additionally, this valve features a unique square-cut elastomer seat to seal at low back pressures.
True Union Design: Our ball check valve features a true union design. This allows for easy removal from a piping system without breaking down piping connections. Just unscrew the two assembly nuts and lift the valve body out of the line.
No Corrosion Failures: Because of their all-plastic construction, these valves will never jam or stick as a result of rust or corrosion. Also they will not contaminate sensitive fluids that come into contact with them.
007

Model Number: TCB1007CFFG
Part Number: 10-25198


Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
