PRODUCT DETAILS

Product Details

Click Photo to Enlarge

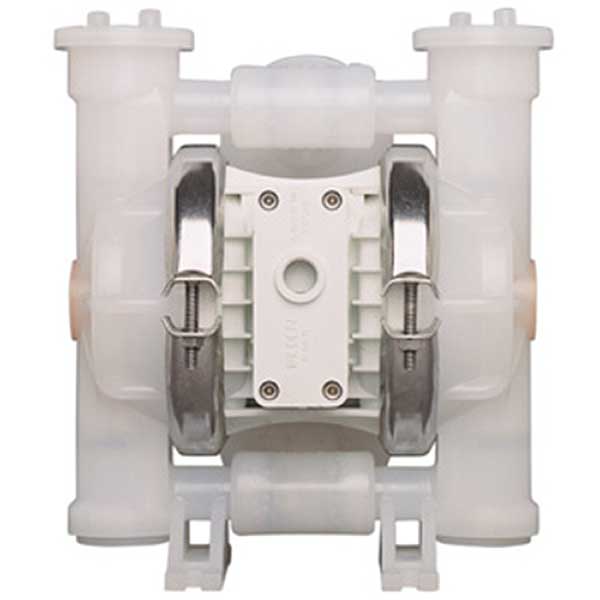

1" Original Plastic Pump - PVDF with Teflon

P2/KKPPP/TNU/TF/KTV/0400, 1" PVDF pump, fitted with Teflon elastomers. 022

Your Needs
• Must be reliable
• Must be durable
• Ease of maintenance
• Submersible
• Keep it cost effective

Our Solution
• Clamped wetted path design
• Proven air distribution systems
• Progressive diaphragm technology
• Portable models

The Results
• Trouble free operation
• Utilitarian pumps
• Lower operational costs & downtime
• Longer MTBF (Mean Time Between Failure)
• Your Success

Note: Other configurations available for demanding applications. Please contact customer service for assistance.

Model Number: 02-6246
Part Number: 25-26543

Width: 11.6574 in
Height: 14 in
Weight: 23 lb
Flow Rate To: 140.0 LPM (37 GPM)
Max Pressure =: 8.6 BAR (125 PSI)
Max Suction Lift Capabilty: 5.5m (18')
Max Diameter Solids: 3.18 mm (1/8")
Elastomer Options: PTFE +4.4 (+40) to +104.4 (+220) °C (F°)
Wetted Parts & Outer Piston: PVDF / PVDF
Center Section: PPL
Air Valve: PPL
Diaphragm: PTFE w/Neoprene Back-Up (White)
Valve Balls: PTFE (White)
Valve Seats: PVDF
Valve Seat O-Ring: PTFE Encap. Viton
Speciality: P2 plastic

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
