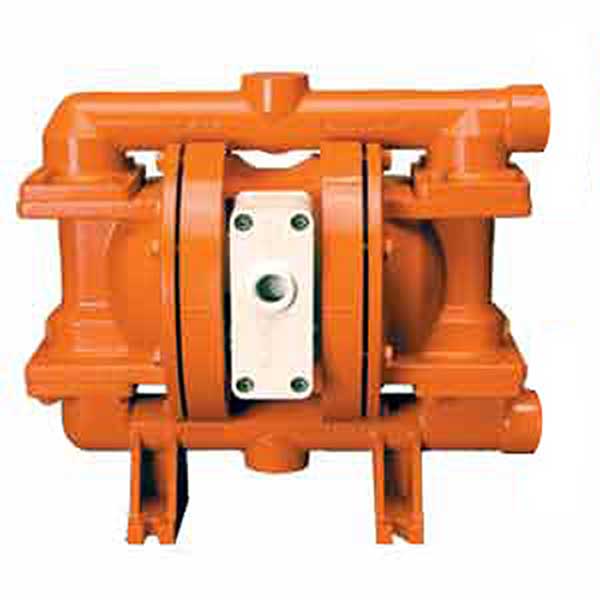

1" Advanced Metal Pump - Aluminum with Teflon

P200/AAPPP/TSU/TF/ATF/0687, 1" bolted aluminum pump with Teflon. 022

Sale Note: Quantities are limited and sale price is only for available stock on hand.

Your Needs
• Maximize containment
• Increase On/Off reliability
• Lower the cost of operation
• Increase flow rates
• Keep it cost effective

Our Solution
• Advanced wetted path designs
• Proven air distribution systems
• Progressive diaphragm technology
• Leak-free operation throughout the pump's life

The Result
• Achieve higher yields
• Increase pump performance
• Lower operational costs & downtime
• Longer MTBF (Mean Time Between Failure)
• Your Success

Note: Other configurations available for demanding applications. Please contact customer service for assistance.

Model Number: 02-11149
Part Number: 25-26552

Width: 14.9000 in
Height: 13 1/2 in
Weight: 24 lb
Flow Rate To: 212 LPM (56 GPM)
Max Pressure =: 8.6 BAR (125 PSIG)
Max Suction Lift Capabilty: 5.4 m (17.6') Dry
Max Diameter Solids: 6.4 mm (1/4")
Elastomer Options: PTFE +4.4 (+40) to +104.4 (+220) °C (F°)
Wetted Parts & Outer Piston: Aluminum / Aluminum
Center Section: PPL
Air Valve: PPL
Diaphragm: PTFE w/SANIFLEX Back-Up (White)
Valve Balls: PTFE (White)
Valve Seats: Aluminum
Valve Seat O-Ring: PTFE (White)
Speciality: 25 mm (1") NPT center-ported inlet and...

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
