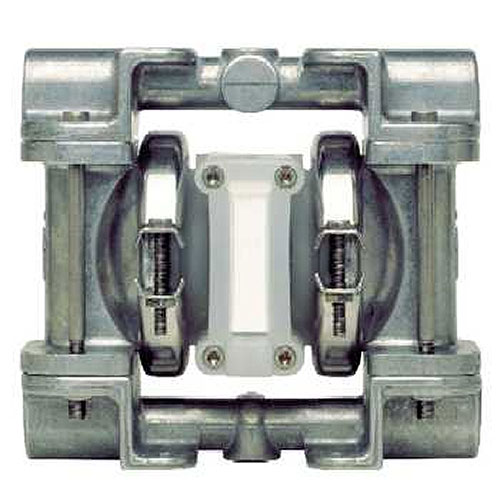

1/4" Original Plastic Pump - Stainless Steel with Teflon

P.025/SZPPP/TNL/TF/STV, 1/4" Stainless Steel pump with Teflon elastomers. 022

Your Needs
• Must be reliable
• Must be durable
• Ease of maintenance
• Submersible
• Keep it cost effective

Our Solution
• Clamped wetted path design
• Proven air distribution systems
• Progressive diaphragm technology
• Portable models

The Results
• Consistent performance
• Utilitarian pumps
• Lower operational costs & downtime
• Longer MTBF (Mean Time Between Failure)
• Your Success

Note: Other configurations available for demanding applications. Please contact customer service for assistance.

Model Number: 00-9733
Part Number: 25-26559

Width: 5.8425 in
Height: 6 1/2 in
Weight: 9 lb
Flow Rate To: 18.91 LPM (5 GPM)
Max Pressure =: 8.6 BAR (125 PSI)
Max Suction Lift Capabilty: 4.1 m (13.5')
Max Diameter Solids: .4 mm (1/64")
Elastomer Options: PTFE +4.4 (+40) to +104.4 (+220) °C (F°)
Wetted Parts & Outer Piston: Stainless Steel / No Piston
Center Section: PPL
Air Valve: PPL
Diaphragm: PTFE w/Neoprene Back-Up O-Ring, IPD (White)
Valve Balls: PTFE (White)
Valve Seats: Stainless Steel
Valve Seat O-Ring: PTFE Encap. Viton

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
