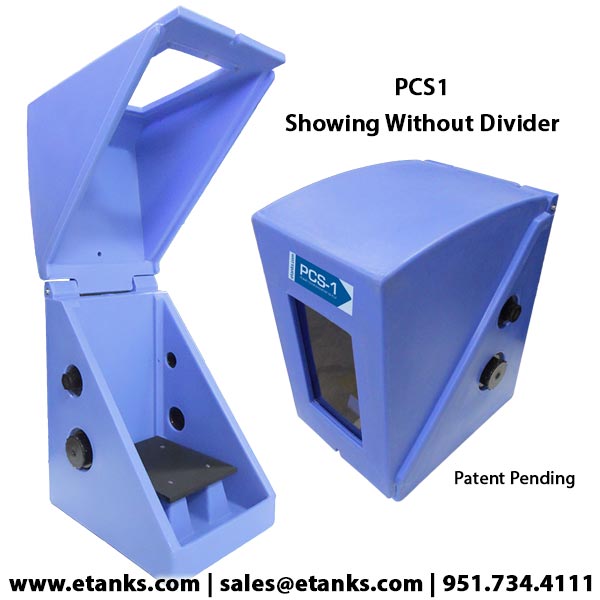

PCS1 Pump Shelf - w/Cover - No Divider - Blue - PE

The PCS product line is ideal for protecting the environment and your workers from injuries due to spilled or spraying chemicals. Pump Spill Containment Enclosure is great in outdoor applications for keeping your pumps out of the sun and weather.

The PCS1 is a pump spill containment enclosure made of polyethylene material for outstanding chemical compatibility. The Pump Containment Shelf 1 houses 1 pump and in event of leak or discharge from pump liquids are contained in built-in sump and drained through bottom drain ports. Raised mounting pad keeps your pump, tubing, and wiring out of spilled chemicals in sump area. (1) 2” and (1) 1” side connection fittings and plugs per side built-in for running tubing, wiring and piping from the exterior to the interior of the enclosure. Cover has built in viewing window to allow operator to visually check for leaks before opening enclosure.

Optional controller mounting plate allows for back mounting of Microvision or similar pump controller.

Optional weather strip foam allows for a weather tight seal between the enclosure’s base and cover. Weather strip is adhesive backed PVC foam gasket and shipped loose.

PCS1 is available in blue and natural; additional colors available upon request and at additional charge.

Patent Pending.

Model Number:
Part Number: 253-31187

Length: 14 in
Width: 18 1/4 in
Height: 22 1/2 in
Weight: 18 lb

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
