1-1/2" 316 SS DD Valve - Male NPT Threads All PTFE Seals

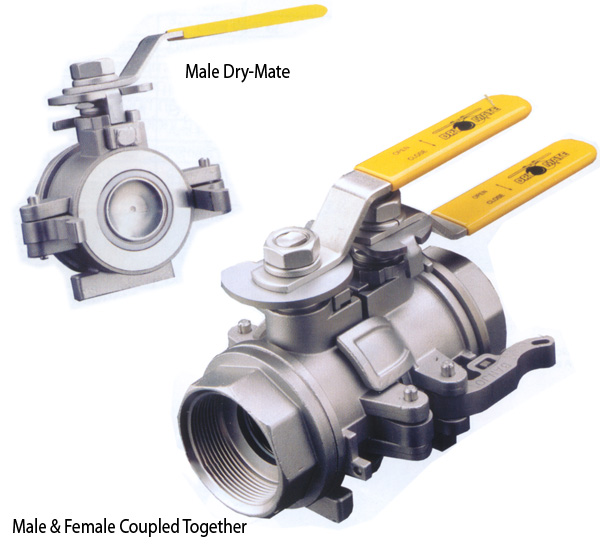

1-1/2" 316 Stainless Steel Dry-Mate Dry-Disconnect Valve - Male, NPT Threads, All PTFE Seals.
• 316 Stainless Steel Construction.
• 100 P.S.I Maximum Operating Pressure.
• 300°F Maximum Operating Temperature.
• Spillage Data: 1” = 1ml, 1-1/2” and 2” = 2ml
• When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position.
• When Dry-Mate halves are apart, handles cannot be turned to open position.


Applications – Agriculture, Industrial, Pharmaceutical, Chemical Processing.

Model Number: DM150ASS
Part Number: 10-4069

Weight: 7 lb

Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
