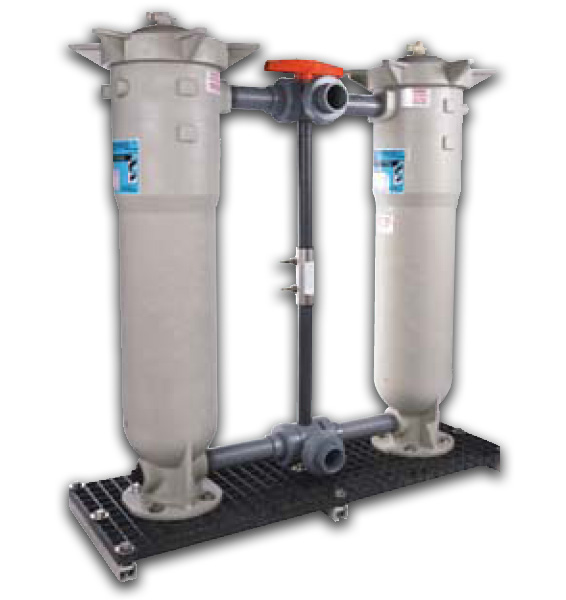

Duplex Cartridge Filter Vessels - Series 4200 PPL - HC (1)

Series 4200 Polypropylene Duplex Cartridge Filters HC (1) Housing Part. Series 4200 Plastic Simplex Filter Housings have flanged connections, FPM seals, are assembled with silicone free lubricant and CPVC valve assemblies. Cartridges are not included.
An Important Advance in Cartridge Filtration: Now you can have all the benefits of cartridge filtration for industrial and commercial applications – while getting complete corrosion resistance. Hayward’s one-piece, seamless, plastic-body cartridge filters will never rust or corrode, nor will they contaminate the process fluid.
Thousands of Applications: Hayward's Series 4200 all-plastic cartridge filters have been designed to work in the most demanding of applications – whether for high purity water or aggressive chemical filtration. These heavy-wall-housing filters will withstand operating pressures of up to 150 PSI with no problem. Series 4200 filters will work in corrosive atmospheres and harsh environments, places where a metal housing would have to be painted or epoxy-coated just to survive. All this, plus light weight and easy installation, make the Hayward Series 4200 cartridge filter right for your application.
The Right Configuration for Your Application: Series 4200 cartridge filter housings are offered in three sizes – making it easier to choose the exact filter for your application requirements. And you can choose between two types of Hayward cartridges. Hayward HC cellulose cartridges are perfect for all types of water filtration up to 165°F. Their special design packs 47 sq ft of filter media into a 16" tall cartridge. Hayward PF polypropylene cartridges are silicone-free and feature graded density construction for superior particle retention.
Duplex Models: Choose a Hayward Series 4200 duplex cartridge filter for those applications where the pipeline flow cannot be shut down to change out filter cartridges. Duplex filters allow the pipeline flow to be diverted to one of the two filter housings. This permits the off-line housing to be serviced without flow shutdown.
Model Number: CFLT4201DUPA
Part Number: 12-4693
Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
