Ultra-TrackPans - Center TrackPan With Grates No Covers

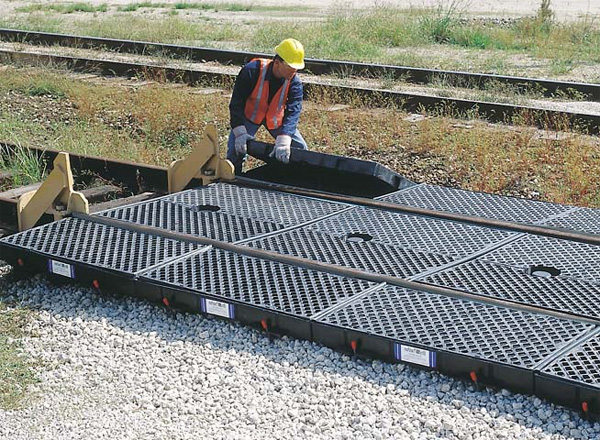

Ultra-TrackPans - Center TrackPan With Grates No Covers - Capture Hazardous Spills From Railroad Tanker Cars. 016

• Ultra-TrackPans have been designed to provide spill containment at industrial rail sidings and locomotive maintenance facilities. Available in virtually any length, Ultra-TrackPans may be used to collect small spills and leaks OR to capture and channel off significant spills caused by defective equipment or a major overflow.
• Prevent Costly Cleanup and Regulatory Fines.
• Modular Design - Center and Side Pans are 53.5" long; containment areas can be easily assembled to any length desired.
• All-polyethylene Construction - Rugged TrackPans withstand harsh chemicals and are designed to function in temperatures ranging from -40°F to +140°F.
• Sealed System - Polyethylene gaskets keep spills from falling between the rails and Pans.
• Trucks and other vehicles can drive over TrackPans with grates in place. (To drive over TrackPans, firm footing must be beneath the Pans; also must "ramp up" to Side Pans with asphalt or concrete.)
• Economical, easy to install.
• Modular TrackPan design can be customized to meet your specific needs.
• Optional TrackPan Covers Keep Rainwater Out of the Pans, Providing Effective Stormwater Management.
• Polyethylene Covers are left in place until the railcar(s) arrive to be off-loaded or loaded. Lightweight covers mechanically lock into the polyethylene decking and will not blow off in windy conditions.
• Unique stormwater feature is designed to eliminate "pooling" of rain that falls on top of the Center Pan Covers; rain is channeled onto the ballast between the tracks, stays out of the Pans.
• Ultra-TrackPans Are Available In Two (2) Models: TrackPans and Grates, No Covers and TrackPans with Grates and Covers.
• Low Maintenance - unlike carbon steel track pans, Ultra-TrackPans will not rust or corrode. Polyethylene resin is treated with a UV inhibitor, resists degrading effects of the sun.
• Slip Resistant Surfaces - Pans, grates and covers have been designed with safety in mind. All top surfaces resist slips when wet or oily.
• Long Work Life - Estimated to perform 20-30 years; longer than fiberglass pans.

Includes: 2 Bulkhead Fittings, 4 Gaskets and 2 Grates.
Containment Capacity: 18 gallons
Model Number: 9566
Part Number: 14-9743
Length: 53 1/2 in
Width: 53 1/2 in
Height: 6 in
Weight: 106 lb
Your Price: CALL

Call for competitive pricing or to locate a distributor in your area (877) 734-3759

All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
