No Boundaries Tank WATCH-IT® System

Tank Watch-IT

Tank WATCH-IT® Ultra Sonic Sensors

Connect Tank Sensor Benefits
Ultra sonic sensors work by emitting a sound pulse that reflects off the surface of tank contents. The sensor sends that data to our TWI cloud which translates in to useable information for you. The sensor will tell you the time of the reading, the temperature of the tank, the voltage level of its internal batteries, and most importantly the percent-full and remaining gallons of your tank contents. The sensors can also report their GPS position for mobile tanks.

Ultrasonic sensors are excellent for measuring but not limited to:
  • Oils
  • Waste Water
  • Acids
  • Pesticides
  • Caustics
  • Salt Water
  • Vinegar
  • Rice Syrup
  • Corn Syrup
  • Caustic Soda
  • Potable Water
  • Grease
  • Diesel & Biodiesel
  • Ink
  • Liquid Chlorine
  • Solvents Bleach
  • Water
  • BioFuels
  • Hydrochloric Acid
  • Nickel Chloride
  • Phosphoric Acid
  • Calcium Hydroxide
  • Sulfuric Acid
  • Sodium Hypochlorite
  • Chlorine Dioxide
  • Aqueous Ammonia
  • Sodium Hydroxide
  • Gasoline
  • Ferric Chloride
  • Hydrofluoric Acid
  • High-Purity Semiconductor Chemicals
  •
    Ultrasonic Sensor

    Ultrasonic solutions are available for single tank applications and multi tank applications. Our Single tank application is the Connect-Tank sensor:
    Connect Tank Sensor

    The Connect-Tank sensor has an integrated cellular gateway. This means that there is no other hardware is necessary; the Connect-Tank is a complete system.

    The CT communicates over cellular broadband and is powered by an internal battery. There is no interface and device come pre-configured to your tank.


    Single Tank Installation Soultion


    If you have more than one tank at a single location that would benefit from ultrasonic monitoring than you can save money with our multi tank application: The M3 Sensor, and the multi tank gateway.

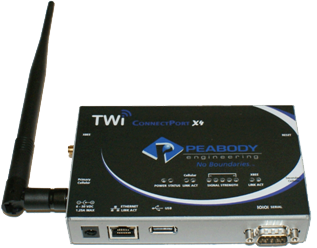

    Multi Tank Gateway
    The Multi-Tank Gateway

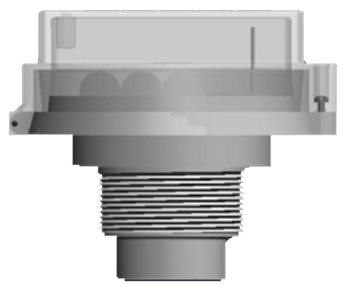

    The M3 sensors sync with an external gateway via a short range radio built in to both the sensor and the gateway. The gateway collects all the data from the sensors around it and then passes it on to the web in a single transmission. A single gateway can support up to ten sensors and is able to connect to the web through LAN, WI/FI, or cellular broadband. The gateway reduces hardware cost and broadband costs in multiple tank applications. M3 SensorThe M3 Sensor

    Multi Tank Installation Soultion
